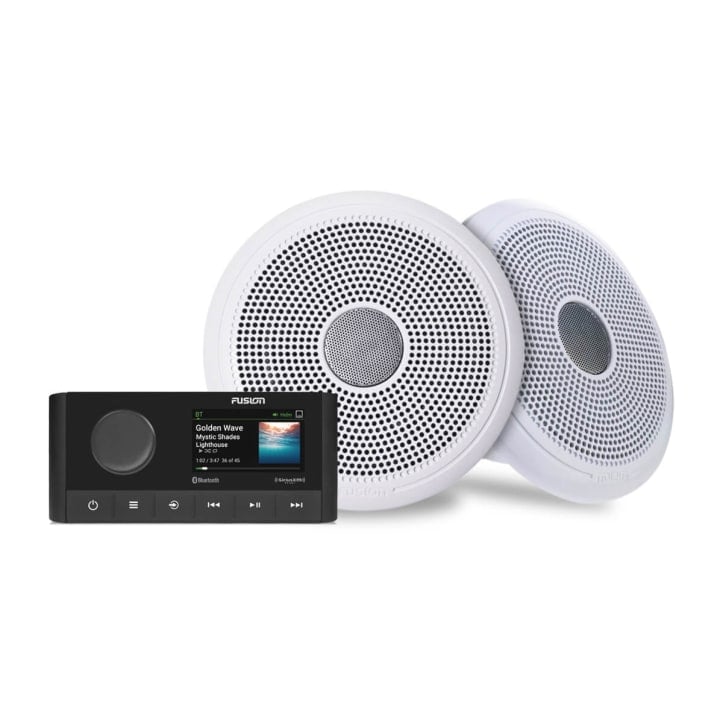

Garmin MS-RA210KCW, MS-RA210 and XS Classic Speaker Kit

Garmin MS-RA210KCW, MS-RA210 and XS Classic Speaker Kit

Amplify your boating experience with Garmin MS-RA210KCW, an outstanding Fusion stereo and speaker kit, the exceptional sound system which adds a dash of entertainment to your water adventures.

Ingress protected with IPX6 and IPX7 certification, Fusion kit comes ready-to-install and plays straight out of the box. The built-in Class D amplifier delivers higher frequency allowing you to enjoy perfect soundtracks in all weather conditions.

While the multi-zone technology allows you to control two separate audio zones from one control, the software is conveniently updated via Bluetooth for seamless sound delivery.

Designed to accommodate your growing needs, Fusion kit can expand with additional Fusion speakers, subwoofers and amplifiers and all this can be controlled through a Garmin MFD, smart device or your Garmin watch.

Highlights:

• Modern design and aesthetics allows elegant installation
• Engineered to handle harsh marine environment
• 6.5" Fusion speakers deliver impeccable sound on water
• Designed to comply with ISO12216
• Marine specific design elements to complement your boat decor

Specifications:

Physical dimensions (HxWxD): MS-RA210: 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm)

Weight: MS-RA210: 12.4 oz (350 g)

Water rating: IPX6 and IPX7 (front panel only, when properly installed)

Power input: 10.8-16 VDC

Operating temperature range: 32° to 122° F (0° to 50° C)

Current (max.): 15 A

NMEA 2000® LEN    MS-RA210: 1 (50 mA)

BLUETOOTH® wireless range: Up to 30 ft (10 meters)

ANT wireless range: Up to 10 ft (3 meters)

Wireless frequencies/protocols: BLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal

Compass-safe distance: 5.9" (150 mm)

Display: MS-RA210: 2.7" optically bonded color LCD

Built-in amplifier: Class-D (minimum 4 ohm impedance)

Peak power: MS-RA210: 200 W

Rated power output (4 ohm): MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD

Built-in Digital Signal Processing: MS-RA210: yes (with preconfigured DSP profiles)

Fusion-Link™ control: MS-RA210: yes (with MFD, smartphone and Garmin watch)

Multi-Zone™ technology: 2 zones

BLUETOOTH wireless technology: yes

ANT wireless technology: yes

SiriusXM-ready: MS-RA210: yes (requires SiriusXM Connect vehicle tuner)

DAB+ ready: MS-RA210: yes (requires DAB100A antenna module)

NRX remote compatibility: MS-RA210: yes

Multi-language interface: MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech Danish, Dutch, English, Finnish, French, German, Greek Italian, Japanese, Korean,
Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish

Software updates: MS-RA210: USB

Warranty    : 1 year

Sources: MS-RA210: AM/FM/BLUETOOTH/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available
in Europe and Australia only)

Auxiliary input: One RCA input (AUX)

NMEA 2000    MS-RA210: 1 port

USB 2.0    MS-RA210: 1 port

SiriusXM satellite radio    MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)

AM/FM radio: One Motorola antenna connector port

Speaker: MS-RA210: 4 speaker connections (2 zone amplified)

RCA pre-out (left, right and subwoofer): MS-RA210: 2 zones (requires external amplification)

Line out: MS-RA210: Zone 1, Zone 2 (1 x L + R, requires external amplification)

Subwoofer out: MS-RA210: Zone 1, Zone 2 (requires external amplification)

Speaker Specifications

Physical dimensions (Diameter x Depth): XS Classic Speaker: 6.97" x 3.19" (177 x 81 mm)

Water rating: IP65

Configuration    EL Speaker: Full range

XS Speaker: Coaxial

Speaker size: 6.5"

Peak power (watts): XS Speaker: 200 W

RMS Power (watts): XS Speaker: 50 W

Sensitivity (1 watt/1 meter): XS Speaker: 91 dB

Frequency response: XS Speaker: 80 Hz-18 kHz

Nominal impedance: 4 ohm

Recommended amplifier power (RMS): XS Speaker: 20-150 W/Ch

Operating temperature range: 32° to 122° F (0° to 50° C)

Voice coil diameter: XS Speaker: 1.18"

Cone material: Polypropylene cone with cloth surround

Tweeter type    XS Speaker: Aluminum dome

Compass-safe distance: XS Speaker: 122" (310 cm)

Warranty    : 3 years

Mounting diameter clearance: XS Speaker: 5.31" (135 mm)

Mounting depth clearance: XS Speaker: 2.64" (67 mm)

Sealed enclosure volume: XS Speaker: 0.28 cubic ft (8 L)

What's in the Box:

1 x MS-RA210 marine stereo

1 x Pair of XS Series classic white marine speakers

1 x AM/FM stealth antenna

1 x 6 ft (2 meter) NMEA 2000 drop cable

2 x 19 ft (6 meter) speaker wires

1 x Dust cover

1 x Wiring harnesses and mounting accessories

1 x Mounting gasket

4 x  6-gauge, self-tapping screws

2 x Screw covers

1 x Power and speaker wiring harness

1 x Auxiliary-in, line-out, and subwoofer-out wiring harnesses

12 x Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
